أجهزة قياس زاوية التلامس (جونيوميتر)

أجهزة جونيوميتر وتنسيوميتر لقياس زاوية التلامس وطاقة السطح والتوتر السطحي.

الفئة
علوم الأسطح والأغشية الرقيقة
المصنّع
rame-hart
بلد المنشأ
الولايات المتحدة
عدد الموديلات
10
اطلب عرض سعر موقع المصنّع
Contact angle goniometers

الموديلات

10 موديل ومواصفاتهم الفنية

01Model 260 Goniometer / Tensiometer
Model 260 Goniometer / Tensiometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • Advanced 3-axis stage
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • DROPimage Advanced
  • Calibration Tool

المواصفات الفنية

رقم الموديل260-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصةAdvanced 3-axis stage with fine adjustment
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Advanced
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز489 x 267 x 508 mm (19.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons
02Model 90 Pro Contact Angle Goniometer
Model 90 Pro Contact Angle Goniometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • U3-Series Camera
  • Adjustable Stage Support
  • Leveling Specimen Stage
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • Calibration Tool
  • All Necessary Cables and Setup Tools

المواصفات الفنية

رقم الموديل90-U3-PRO
خصائص السطحContact angle and surface energy (surface tension and interfacial tension can be measured with illumination upgrade)
U3 Camera Speed25 frames/sec (full window)
U3 Camera Resolution720 x 540 pixels (full window)
المنصةLeveling specimen stage with z-axis adjustment
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةAdjustable LED backlight
البرنامج المثبّتDROPimage Pro
مصدر الطاقة110-240 VAC, 50-60 Hz
أبعاد الجهاز40 x 20 x 40 cm (16 x 8 x 16 in)
وزن الجهاز2.61 kg (5 lb 12 oz)
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
AccessoryPart NumberCompatible?Description
Automated Dispensing System100-22In-software dispensing control supported
Environmental Fixture100-14Supported fixture for ambient environmental protection and liquid/liquid studies (surface/interfacial tension measurements require illumination upgrade)
Rotating Wafer Support100-21Rotating wafer support up to a 4" diameter
Peltier Environmental Chamber100-30Supported chamber for controlled temperature experiments from -50°C to 150°C
Heated Environmental Cell100-33Supported enclosure for controlled temperature experiments from ambient to 300°C
Hot Plate100-33-HPSupported heating plate for controlled temperature experiments from ambient to 300°C
Fiber Optic Illuminator Upgrade90-FOIOptional upgrade for the Model 90 system to enable surface/interfacial tension measurements
Manual Tilting Base100-25-MSupported with leg upgrade
03Model 250 Goniometer / Tensiometer
Model 250 Goniometer / Tensiometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • 3-Axis Stage Support
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • DROPimage Advanced
  • Calibration Tool

المواصفات الفنية

رقم الموديل250-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصة3-axis stage with leveling specimen stage
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Advanced
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز489 x 267 x 508 mm (19.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons
04Model 90 Contact Angle Goniometer
Model 90 Contact Angle Goniometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • U3-Series Camera
  • Adjustable Stage Support
  • Leveling Specimen Stage
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • Calibration Tool
  • All Necessary Cables and Setup Tools

المواصفات الفنية

رقم الموديل90-U3-CA
خصائص السطحStatic contact angle
U3 Camera Speed25 frames/sec (full window)
U3 Camera Resolution720 x 540 pixels (full window)
المنصةLeveling specimen stage with z-axis adjustment
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةAdjustable LED backlight
البرنامج المثبّتDROPimage CA (upgradeable to DROPimage Pro for expanded measurement capabilities)
مصدر الطاقة110-240 VAC, 50-60 Hz
أبعاد الجهاز40 x 20 x 40 cm (16 x 8 x 16 in)
وزن الجهاز2.61 kg (5 lb 12 oz)
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
Software IncludedDROPimage CA, easy to measure contact angle
Software LicensingPre-installed software comes licensed to your organization and includes one year of upgrades and priority support
Static Contact Angle Range0-180°
Contact Angle Accuracy+/-0.1°
Contact Angle Resolution+/-0.1°
Continuous ReportingSupported for contact angle measurements
Upgrade PathUpgradeable to DROPimage Pro without additional hardware
AccessoryPart NumberCompatible?Description
Automated Dispensing System100-22Dispensing contol supported by seperate program
Environmental Fixture100-14*Surface/interfacial tension measurements require Fiber Optic Illuminator upgrade. Inverted bubble measurements require upgrade to DROPimage Pro.
Film Clamps100-15For securing samples to stage
Fiber Optic Illuminator90-FOIOptional upgrade for the Model 90 system to enable surface/interfacial tension measurements
Manual Tilting Base100-25-MSupported with leg upgrade
05Model 190 Contact Angle Goniometer
Model 190 Contact Angle Goniometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • 3-Axis Stage Support
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • Calibration Tool
  • All Necessary Cables and Setup Tools

المواصفات الفنية

رقم الموديل190-U6
خصائص السطحStatic contact angle
المنصة3-axis stage with leveling specimen stage
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage CA (upgradeable to DROPimage Pro for expanded measurement capabilities)
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز480 x 500 x 250 mm (19 x 20 x 10 in)
وزن الجهاز6.3 kg (14 lb), excluding PC
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons
06Model 210 Goniometer
Model 210 Goniometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • 3-Axis Stage Support
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • Calibration Tool
  • All Necessary Cables and Setup Tools

المواصفات الفنية

رقم الموديل210-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصة3-axis stage with leveling specimen stage
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Pro
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز489 x 267 x 508 mm (19.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons
07Model 400 Goniometer / Tensiometer
Model 400 Goniometer / Tensiometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 21-inch Optical Bench
  • 3-Axis Stage Support
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • 8" Wafer Support
  • PC with Pre-installed Software
  • Calibration Tool

المواصفات الفنية

رقم الموديل400-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصةAdvanced 3-axis stage with fine adjustment
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Pro
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز616 x 267 x 508 mm (24.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons
08Model 290 Goniometer / Tensiometer
Model 290 Goniometer / Tensiometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 16-inch Optical Bench
  • Advanced 3-Axis Stage
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • Automated Dispensing System
  • Automated Tilting Base
  • PC with Pre-installed Software

المواصفات الفنية

رقم الموديل290-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصة3-axis stage with leveling specimen stage
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Advanced
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز489 x 267 x 508 mm (19.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons

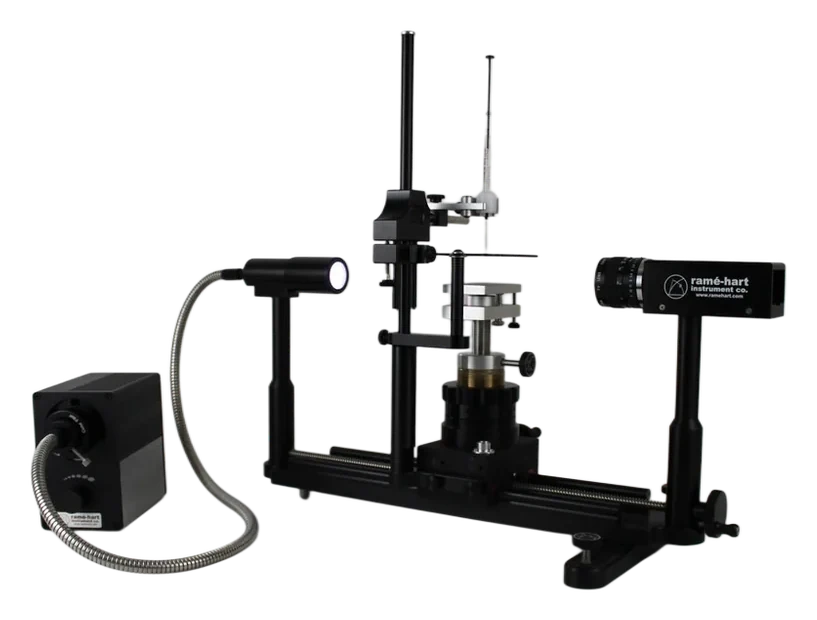

09Model 500 Advanced Goniometer
Model 500 Advanced Goniometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 21-inch Optical Bench
  • Advanced 3-Axis Stage
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • PC with Pre-installed Software
  • DROPimage Advanced
  • Calibration Tool

المواصفات الفنية

رقم الموديل500-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصةAdvanced 3-axis stage with fine adjustment
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Advanced
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز616 x 267 x 508 mm (24.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons

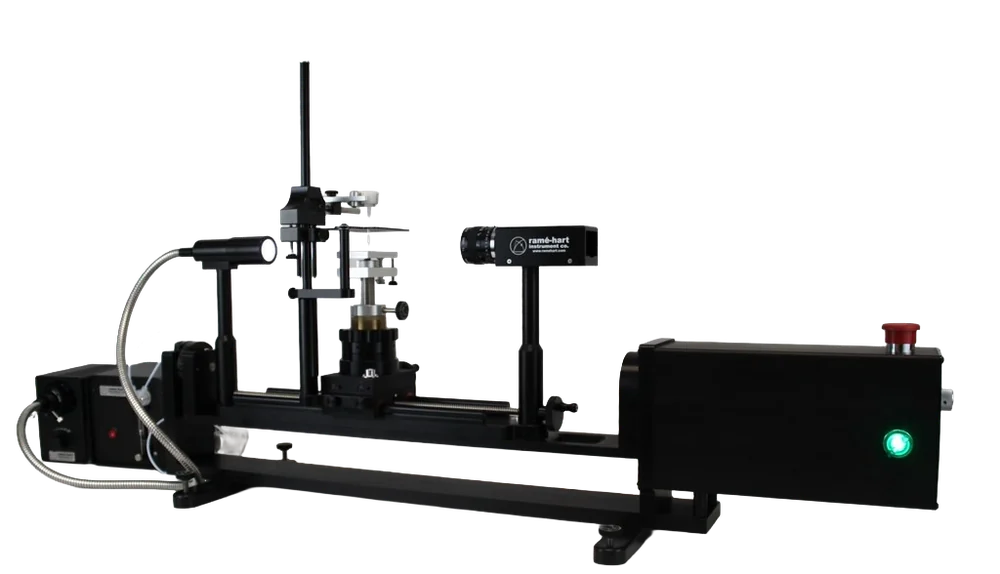

10Model 590 Advanced Goniometer / Tensiometer
Model 590 Advanced Goniometer / Tensiometer

We respond to inquiries within one business day. Reach out today for a quote or more information!

  • 21-inch Optical Bench
  • Advanced 3-Axis Stage
  • Leveling Specimen Stage
  • Fiber Optic Illuminator
  • Manual Syringe Assembly
  • Automated Dispensing System
  • Automated Tilting Base
  • PC with Pre-installed Software

المواصفات الفنية

رقم الموديل590-U6
خصائص السطحContact angle, surface energy, surface tension, and interfacial tension
المنصةAdvanced 3-axis stage with fine adjustment
مقاس المنصة51 x 76 mm (2.01 x 2.99 in)
الإضاءة الخلفيةLED Fiber Optic Illuminator
البرنامج المثبّتDROPimage Advanced
مصدر الطاقة110 - 240 VAC, 50-60 Hz
أبعاد الجهاز616 x 267 x 508 mm (24.25 x 10.51 x 20.00 in)
وزن الجهاز6.10 kg
الضمانOne-year warranty included with every instrument. Extended warranties can be purchased upon request
دقة الكاميرا1920 × 1200 pixels (2.3 MP)
أقصى معدل إطارات للكاميرا2320 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)160 frames per second
مقاس الحساس1/2.3-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر40.2 dB
الضوضاء المظلمة عند 541 نانومتر2.5 electrons
دقة الكاميرا720 × 540 pixels (0.3 MP)
أقصى معدل إطارات للكاميرا5400 frames per second
معدل الإطارات الافتراضي (الإطار الكامل)520 frames per second
مقاس الحساس1/2.9-inch
عمق البكسلMono 8-bit
عمق البكسل (الأقصى)Mono 12-bit
توصيل الكاميرا والطاقةUSB 3.0
نسبة الإشارة للضوضاء عند 541 نانومتر43.1 dB
الضوضاء المظلمة عند 541 نانومتر2.9 electrons

الشراء في مصر

أسئلة عن أجهزة قياس زاوية التلامس (جونيوميتر)

أين أشتري أجهزة قياس زاوية التلامس (جونيوميتر) في مصر؟

تورّد طيبة العلمية أجهزة قياس زاوية التلامس (جونيوميتر) من rame-hart (الولايات المتحدة) في مصر، مع التركيب وتدريب المستخدمين والصيانة بواسطة مهندسيها. وتعرض هذه الصفحة 10 موديلاً.

كم سعر جهاز زاوية التلامس في مصر؟

يختلف السعر حسب الموديل والتجهيزات والملحقات، لذلك تقدّم طيبة العلمية عرض سعر لكل طلب. أرسل الموديل أو التحليل المطلوب عبر واتساب أو اتصل على 01005299601 لتحصل على عرض سعر مكتوب.

هل تقوم طيبة العلمية بتركيب وصيانة أجهزة rame-hart؟

نعم. تركّب طيبة العلمية أجهزة rame-hart التي تورّدها وتشغّلها، وتدرّب المستخدمين، وتقدّم المعايرة والصيانة الوقائية والإصلاح بعد التسليم.

مش لاقي اللي محتاجه؟

ابعت لنا طريقة التحليل، وإحنا نلاقي الجهاز.

Search the site

اكتب حرفين على الأقل.
